Supervised Learning

Supervised learning is the task of learning a function mapping from input to output $$ y = f(x) $$ The relationship can be linear/nonlinear or convex/nonconvex. The approach learns from labeled data.

Terminology

Input (Features) : $x^{(i)}$

Output (Target) : $y^{(i)}$

Training example : $(x^{(i)}, y^{(i)})$

Hypothesis : $h(x)$

Parameters / Weights : $\theta$

Types

Regression : Continuous values

Classification : Discrete values

Linear Regression

Objective

Learn parameters $\theta$ for a given hypthesis function $h$ to best predict output $y$ from input $x$

Hypothesis Function

Candidate model that we think will best fit the data

[Example] A linear model can be represented as $$ \begin{aligned} h(x) &= \sum_{i=0}^d \theta_i x_i \cr &= \theta^T x \end{aligned} $$

Cost / Loss Function

Measure of the accuracy or error of the model. The cost is driven to zero to fit the model to the data.

[Example] A common cost function is least-squares $$ J(\theta) = \frac{1}{2} \sum_{i=1}^{n} ( h_\theta (x^{(i)} - y^{(i)}))^2 $$ which results in ordinary least squares regression

Gradient Descent

An optimisation algorithm commonly used to fit machine learning models. It is an iterative, first-order approach. It is also known as the Least mean square (LMS) update rule or Widrow-Hoff learning rule.

The update (for single training example) $$ \theta_j := \theta_j - \alpha \frac{\partial}{\partial \theta_j} J(\theta) $$

moves $\theta$ in the direction of best improvement

Batch Gradient Descent

More generally, gradient descent can be applied to multiple training examples simultaneously by grouping updates into vector $x$ $$ \theta := \theta + \alpha \underbrace{\sum_{i=1}^{n} \left( y^{(i)}- h_\theta(x^{(i)}) \right) x^{(i)} }_{\large = \frac{\partial J}{\partial \theta} \quad} $$ Which is equivalent to gradient descent on the original cost function $J$.

Batch gradient descent looks at every example on every iteration and can therefore be slow.

Stochastic Gradient Descent (SGD)

An alternative to batch gradient descent is stochastic gradient descent (also known as incremental gradient descent).

SGD updates the weights $\theta$ on every iteration, making much quicker progress for large datasets.

The update rule is given by $$ \theta := \theta + \alpha \left( y^{(i)}- h_\theta(x^{(i)}) \right) x^{(i)} $$

which is repeatedly run through a loop

Batch vs SGD

In most cases being close to the minimum is good enough, and therefore people choose SGD for the faster convergence

The Normal Equations (Explicit Minimisation)

In the case of linear regression, $J$ can be minimised explicitly by taking the derivatives w.r.t $J$ and setting them to zero

Matrix Derivatives : For function $f : \mathbb{R}^{n \times d} \rightarrow \mathbb{R}$ the Jacobian is $\nabla_A f(A)$

Least-Squares via Moore-Penrose Psuedoinverse

Set $\nabla_\theta J(\theta) = 0$

$$ \underbrace{\nabla_\theta J(\theta)}_{= 0} = X^TX \theta - X^T y $$ Therefore $$ X^TX \theta = X^T y $$ Which gives the closed-form solution $$ \theta = (X^TX)^{-1} X^T y $$

Probabilistic Interpretation

Linear regression with least-squares cost can be derived from statistical methods to give a probabilistic interpretation.

Assume target and inputs are related via $$ y^{(i)} = \theta^T x^{(i)} + \underbrace{ \epsilon^{(i)} }_\text{noise} $$ where $\epsilon^{(i)}$ are unmodelled effects/noise

Assume $\epsilon^{(i)}$ are Gaussian IID $$ p(\epsilon^{(i)}) = \frac{1}{\sqrt{2\pi\sigma}} \exp \left( - \frac{(\epsilon^{(i)})^2}{2\sigma^2} \right) $$ Which implies that $y$ given $x$ parameterised by $\theta$ is gaussian $$ p(y^{(i)} | x^{(i)};\theta) = \frac{1}{\sqrt{2\pi\sigma}} \exp \left( - \frac{ (y^{(i)} - \theta^T x^{(i)})^2 } { 2\sigma^2 } \right) $$ or $$ y^{(i)} | x^{(i)}; \theta \sim \mathcal{N}(\theta^T x ^{(i)}, \sigma^2) $$

Likelihood Function

The likelihood function answers the question

Given $X$ and $\theta$, what is the distribution of $y^{(i)}$s?

$$ \begin{aligned} L(\theta) &= L(\theta; X, \vec{y}) \cr &= p(\vec{y}|X;\theta) \end{aligned} $$ Can be written as $$ \begin{aligned} L(\theta) &= \prod_{i=1}^{n} p(y^{(i)} | x^{(i)}; \theta) \cr &= \prod_{i=1}^{n} \frac{1}{\sqrt{2\pi\sigma}} \exp \left( - \frac{ (y^{(i)} - \theta^T x^{(i)})^2 } { 2\sigma^2 } \right) \end{aligned} $$

Maximum Likelihood Estimation (MLE) of $\theta$

The Principle of maximum likelihood says that we should choose $\theta$ to maximise $L(\theta)$ (make the probability of $y$ given $x$ as high as possible)

To simplify the procedure, the we can maximise any strictly increasing function of $L(\theta)$ such as log likelihood, $l(\theta)$. $$ l(\theta) = n \log \frac{1}{\sqrt{2\pi\sigma}} - \frac{1}{2\sigma^2} \sum_{i=1}^{n} ( y^{(i)} - \theta^T x^{(i)} )^2 $$ Which is the same as minimizing the least-squares costs $$ J(\theta) = \frac{1}{2} \sum_{i=1}^{n} ( y^{(i)} - \theta^T x^{(i)} )^2 $$

Locally Weighted Linear Regression (LWR)

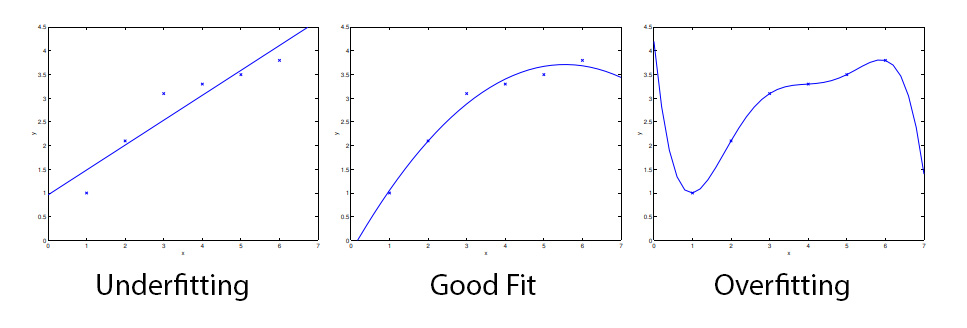

The choice of features is important because it can result in overfitting or underfitting.

But one method to make the choice of features less critical is locally weighted linear regression (LWR), assuming there is sufficient training data.

Procedure

1. Fit $\theta$ to minimise $\sum_i w^{(i)} ( y^{(i)} - \theta^T x^{(i)} )^2$
2. Output $\theta^T x$

[*] Only difference is the weight $w^{(i)}$ $$ w^{(i)} = \exp \left( -\frac{(x^{(i)} - x)^2}{2\tau^2} \right) $$ Which biases around the query point

Bandwidth : $\tau$, controls the falloff distance

This is an example of a non-parametric Algorithm

• Requires data even after fitting
• Non-parametric means hypothesis $h$ grows linearly with size of training set
